Semi-automatic Dished End Polishing Machine 3500x1600x3050mm 2500 kg with 8-12m2 per Hour Efficiency
| Plaats van herkomst | China |
|---|---|
| Merknaam | Trancar Industries |
| Certificering | CE/ISO |
| Modelnummer | TCM-D |
| Min. bestelaantal | 1 set |
| Prijs | USD 9000-5000 Dollar per set |
| Verpakking Details | Op maat gemaakte plywooddozen/kartonnen dozen |
| Levertijd | 35 werkdagen |
| Betalingscondities | L/C, D/A, D/P, T/T, Western Union |
| Levering vermogen | 20 setjes per maand |
Neem contact met me op voor gratis monsters en coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Productnaam | semi-automatische schotelkoppolijstmachine | Dimensie | 3500 x 1600 x 3050 mm |
|---|---|---|---|
| Gewicht | 2500 kg | Spanning | 380V 400V 415V enz. 50Hz/60Hz |
| Kleuroptie | Blauw/Geel/Rood/Grijz | Gebruik | Reiniging van het staaloppervlak, roestverwijdering |
| Voorwaarde | 100% nieuw | Controlesysteem | Halfautomatische/CNC-machines |
| Het oppoetsen Efficiency | 8-12 m2 per uur | Garantie | 18 maand |
| After-sales service | Technische videoondersteuning/Onlineondersteuning/Ingenieur in het buitenland | Voorzien | ODM & OEM |
| Markeren | 3500x1600x3050mm Dished End Polishing Machine,2500 kg Semi-automatic Polishing Machine,8-12m2 per Hour Tank Head Polishing Machine |
||
Productomschrijving

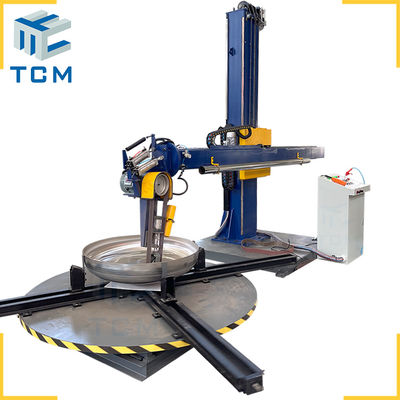

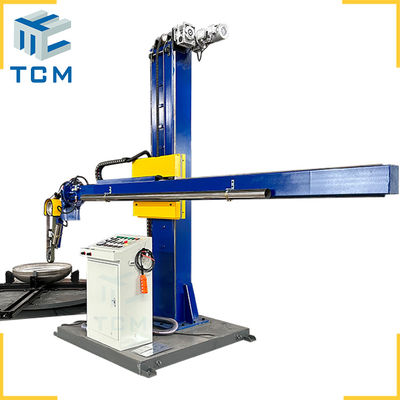

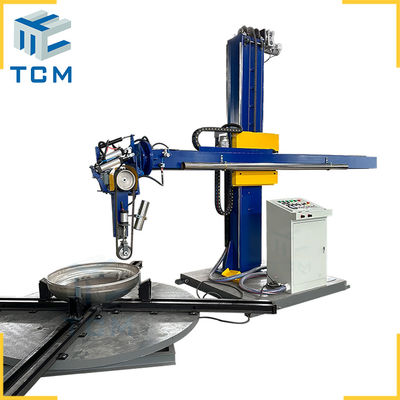

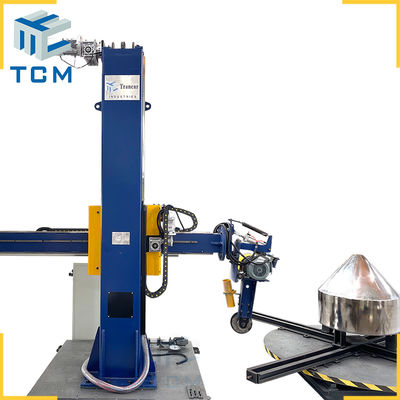

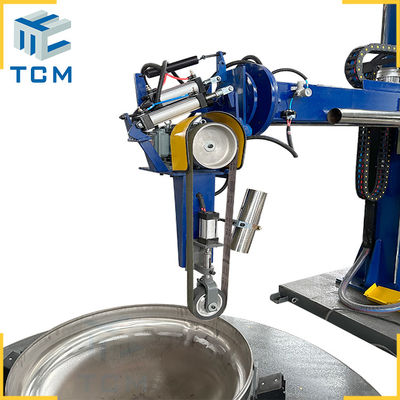

Semi-automatic Polishing Machine for Dish Head End
TCM-D column and boom manipulator automatic surface grinding machine is designed for steel metal tank ends, dish heads, tank caps/bottoms/cones inner and outer surface polishing and buffing.
This model is primarily used for surface polishing of stainless steel, metal, aluminum, and copper dished ends, tank heads, and cylinder heads. It can also be used for vertical tank surface grinding.
The TCM-D automatic polishing machine is suitable for various standard head polishing applications including conical head polishing, spherical head surface polishing, dish head polishing, special heads polishing, and stainless steel oval head inside/outside surface grinding. It's widely used in pharmaceutical, medical, food & beverage, water purification, pressure vessel, cosmetic, wastewater treatment, semiconductor, and photovoltaic industries.
Technical Specifications
| Parameter | Details |
|---|---|
| Available Polishing Workpiece Size | Inside & outside diameter: 450~5000mm |
| Turntable Max Loading Capacity | 1 Ton / 2 Ton /5 Ton / 10 Ton (option or custom design 15 Ton, 20 Ton) |
| Polishing Precision | Surface roughness(Ra) ≤0.25μm |
| Production Efficiency | 6~12 m²/hour |
| Total Dimension | Machine: 3500×1600×3080mm Column: 300×400×8mm Beam: 150×200×6mm |
| Input Total Power | 12 kw |
| Power Supply | 380V 415V / 50Hz 60HZ / 3p or Customization |
| Color | Grey/Green/Blue/Red/Yellow (Custom design available) |
| Machine Weight | 2250kg |
| Suitable Polishing Material | Abrasive sanding belts, grinding wheels (flap/cloth/emery/Nylon wheel etc) |
Packaging and Delivery
- Plywood case + PE Film + Carton protection
- Custom packaging available based on order requirements
Trancar Automatic Polishing Machine in Client's Workshop
Contact Us
For any other queries about our polishing machines, please feel free to contact us. We will respond within 12 hours.
